Description：

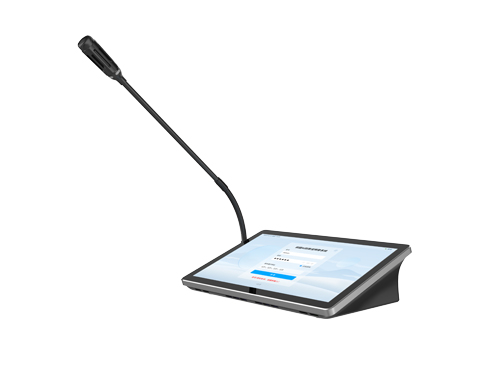

Desktop paging microphone, suitable for use in various alarm centers, duty rooms, leadership offices, etc. Supports AI warning information display. It can realize one-way broadcasting (point-to-point, partition or full area) to the sound reinforcement terminal in the system, or initiate two-way intercom, multi-party discussion and monitoring functions to the intercom equipment.

Features：

* Desktop design, with a 10.1-inch high-definition IPS screen, a resolution of 1024x600, clear display, and support for touch control. Supports entering sleep mode, low power saving mode, and supports account and password management.

* It comes with digital keys and function key interface. It supports calling zones and multiple zones, calling the whole zone broadcast; it supports direct operation to call or intercom any terminal; it supports direct operation to monitor (environmental monitoring) any terminal according to the actual environment, and the monitoring distance reaches 5m.

* It has a custom button that supports custom music playback, intercom, and broadcasting functions; it has an emergency alarm button that supports one-touch alarm broadcasting function.

* Built-in 2×3W (MAX) full-range high-fidelity speaker units can clearly restore call sounds and ensure call quality.

* It has 1 USB interface, supports free on-demand playback of local audio files, and also supports customized encryption management UKey function.

* It has 1 3.5mm headphone output interface and 1 3.5mm MIC input interface, matching most headphones and portable microphones on the market.

* It has 1 audio line output interface, which can be used to expand the power amplifier; it has 1 audio line input interface, which provides multi-source audio transmission.

* It has 1 alarm trigger short-circuit output interface, which can be used to cascade external warning equipment or control access control; it has 1 short-circuit input interface, which can be used to trigger preset voice prompts (or alarms), and can also be used to control access control linkage input short-circuit signals.

* The dual network interface design and the terminal support redundant backup function effectively avoid the problem of the device being unable to permanently connect to the system due to a single point of failure.

* Built-in network audio decoding, supports mainstream audio formats such as MP3, WAV, FLAC, OGG, AAC, OPUS, and is compatible with the full sampling rate of 8kHz-48kHz.

* The device adopts ARM architecture high-performance quad-core CPU chip and exclusive audio algorithm processing technology, designed as a miniaturized hardware module, built-in DSP audio processing, supports ultra-low latency digital mixing, and 10-band EQ equalization configuration.

* It supports remote playback and local on-demand functions, supports obtaining audio sources from USB, local storage, and network storage, and can play audio sources to any terminal in the system; it supports 100 levels of custom audio priority mute control (supports multi-channel signal amplification, mixing, three-level priority control, and tone adjustment).

* It supports help signal ringtones, flashing light prompts, one-click help acceptance and intercom functions. It also supports hands-free calls and broadcast reception for quick connection.

* The device supports full-duplex two-way intercom function, as well as 12-way multi-party conference call function, which can be expanded to 128-way multi-party intercom and call (need to be customized), and supports multi-party call visualization. The device comes with echo cancellation suppression function to ensure clearer call effect.

* Supports automatic answering, manual answering, and customized answering prompt tone; supports customized settings for transfer time, no answer time, and call waiting time.

* Built-in intelligent voice recognition wake-up function, supports voice control of task execution, end, previous song, and next song.

* It supports the display of holiday blessing pictures, can customize the display of blessing pictures, and supports the synchronous display of song lyrics.

* Supports local volume setting, balanced volume control, and task volume control.

* Supports broadcast system equipment list management, real-time status monitoring and display.

* Supports local IP, DHCP, IPv4, domain name management, and server connection and status monitoring.

* Supports remote firmware upgrades and performs maintenance on terminal devices through the network, effectively reducing the workload of maintenance personnel.

* The system uses a data redundancy encoding and decoding algorithm and supports anti-packet loss recovery function. When the network packet loss rate is 37.5%, the audio playback is smooth.

* Supports AI warning information viewing, event processing, recording playback, and real-time intercom operations.

Specifications：
