Features:

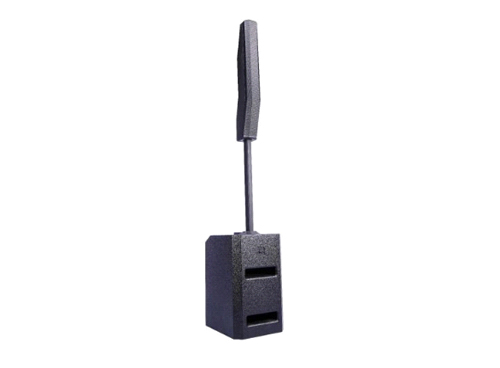

1. The active portable linear array speaker system combines powerful sound effects and portability, with the advantages of simple installation, high sound pressure level and wide low-frequency range.
2. widely used in various mobile performances, small and medium-sized clubs, auditoriums, banquet halls, multi-function halls and various high-end application places.
3. The integrated bass box adopts a bandpass double-reflex design to provide powerful bass effects, and the mid-high frequency adopts a phase plug line source design while avoiding a bulky appearance.
4. The bass box is made of 15mm thick birch plywood, and the sound column is made of 9mm thick birch plywood. The surface is sandblasted and painted, with a high-end and wear-resistant appearance.
5. It uses 1 12-inch woofer and 8 3.5-inch mid-high frequency drivers.
6. Support low frequency enhancement, Bluetooth supports TWS, and supports one-key noise reduction
Specification:
|
type |
Active Portable Column Speaker |
|
Low frequency speaker |
12" low frequency × 1 |
|
Mid-high frequency speakers |
3.5 " × 8 |
|
Coverage |
140° (H) 40° (V) |
|
Input method |
2-way XLR multi-function jack input, 1-way stereo RCA input, 1-way Bluetooth input, 1-way XLR output |
|
Rated Power |
600W+600W |
|
Peak Power |
2400W+ 2400W |
|
Crossover frequency |
4th/200Hz, DSP electronic frequency division |
|
Frequency range |
40Hz-20KHz |
|
Maximum sound pressure level (rated/peak) |
122dB/128dB |
|
Voltage input |
AC 220V 50Hz-60Hz |
|
net weight |
25.5 kg |
|
Dimensions (H x W x D) |
Bass: 625*365*450 (mm) Sound column: 800*103*180 (mm) Support rod: 800*35*50 (mm) |
|
System total height |
2000 (mm) |
|
Power consumption |
1200W10A |
Please leave a message if necessary, we will contact you as soon as possible!
