Description :

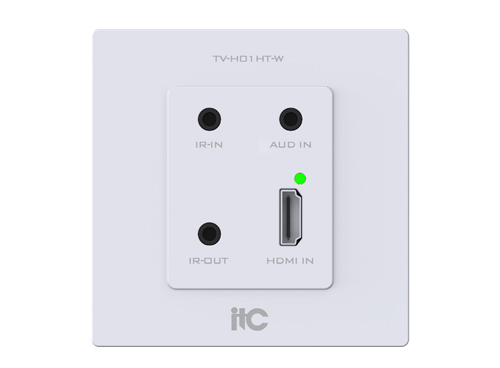

This product is a small , feature- rich HDBaseT wall-embedded transmitter box that supports HDMI video input , internal and external audio selection input, POC power supply, two-way transmission of infrared signals , direct EDID and built -in EDID functions , improving compatibility with different displays , and supporting a resolution of 3840 × 2160 P 30Hz.

Features :

*Equipped with 1-channel HDMI-A female interface input and 1-channel HDBaseT output;

*Supports HDMI1.4 standard and HDCP1.4 standard;

*The transmission resolution supports 3840×2160P30Hz, and the output video resolution is the same as the input resolution;

*Using advanced HDBaseT transmission technology, the video data is not compressed, high-definition, lossless and without delay;

*Supports POC power supply, convenient for on-site installation and wiring ;

*With power-off memory protection function and unique ESD static protection function;

*Equipped with 1-channel 3.5mm analog audio input interface , supporting analog audio and HDMI embedded audio selection input;

*Equipped with 1-channel infrared input interface and 1-channel infrared output interface , supporting infrared two-way transparent transmission;

*Resolution can reach 3840×2160P30Hz; HDPC: 3840×2160P30Hz_24bit; HDTV: 3840×2160P30Hz_24bit;

*Supports EDID management, default pass-through EDID, and also supports built-in EDID.

Specifications:
